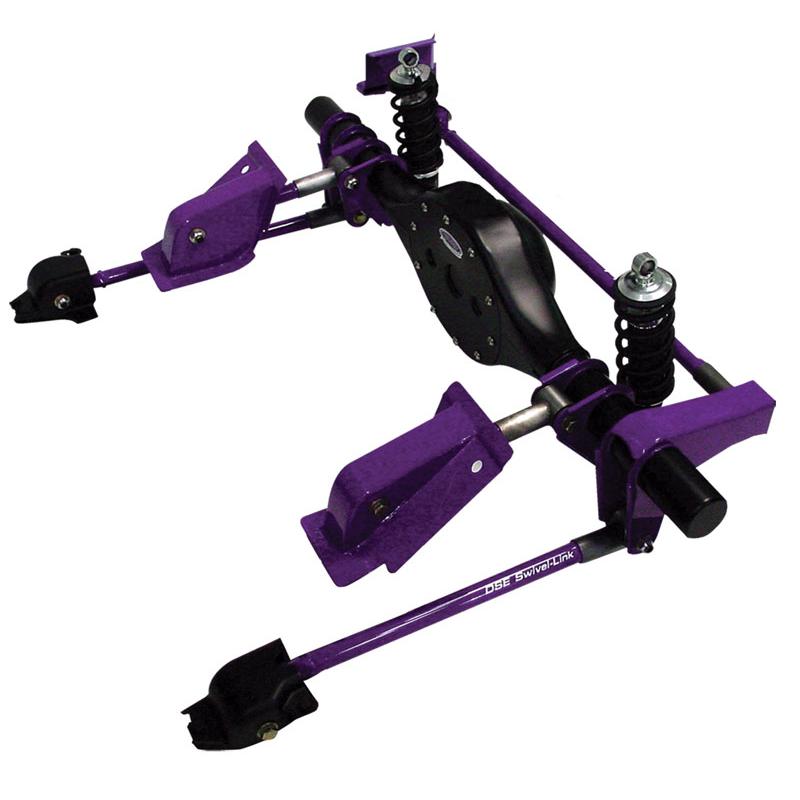

Detroit Speed QUADRALink™ Rear Suspension
This is a great way to upgrade from original leaf spring suspension. DSE’s exclusive new 4-link geometry design is uncompromised to achieve the best possible handling. The new DSE “Swivel-Link™” (Patent No. 7,398,984) allows the suspension to fully articulate with smooth solid motion an no binding. The best feature is that this is achieved without heim-joints. Heim-joints are noisy and prone to short-term life. The DSE QUADRALink™ utilizes tuned high-durometer rubber bushings (in place of heim joints or squeaky urethane bushings). The long upper links provide great pinion and u-joint angle control. DSE’s QUADRALink™ kit utilizes a panhard rod that provides precise and effective rear axle lateral location during hard cornering. The panhard rod is adjustable as ride height changes for roll center control. The rear upper shock crossmember strengthens the rear body and frame section.
Detroit Speed QUADRALink™ Features
- No compromises in suspension geometry
- Designed to work with DSE Deep Tubs or stock tubs (please specify)
- Great ride
- DSE exclusive no-bind “Swivel-Link™” (Patented) technology
- High durometer rubber bushings, no heim joints to wear out and make noise
- Long upper arms for pinion angle control
- Improved anti-squat geometry
- Long panhard rod for rear axle lateral control during hard cornering
- Stock back seat can still be used
- ‘Detroit Tuned’ Coilover shocks/springs allow spring rate tuning and ride height adjustment
- Lower links are offset inboard for additional tire clearance
- All links are powdercoated black
Axle brackets require a 3″ axle tube.
Shock Option Information
| Base Shock | Double Adjustable Shock | Remote Canister Monotube Double Adjustable Shock |
|---|---|---|
 |
 |
 |
| Lightweight aluminum body coilover shock allows ride height adjustment. Specific “Detroit Tuned” valving provides superior handling performance and ride quality under all conditions. 100% dyno tested.
|
Includes all features of base shock plus installed independent compression and rebound adjustments with the simple turn of a knob. Specific “Detroit Tuned” valving provides superior handling performance and ride quality under all conditions. Low friction components provide responsive, consistent, fade free performance. | Includes all features of double adjustable shocks. Specific “Detroit Tuned” valving provides superior handling performance and ride quality under all conditions. Incorporates a gas charged bladder design to provide both high frequency and low speed dampening control. |
